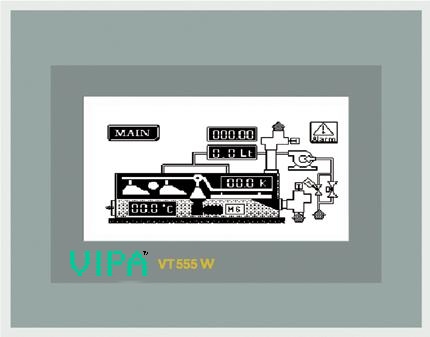

VIPA Operator Panels   >> HMI 555 Touch

MPI and PROFIBUS connection on panel for S7-300^® ; S7-400^®  from Siemens and 100V ; 200V and 300V connections

Programmed by software from VIPA

The VIPA operator panels are designed to communicate to PLC's via MPI interface and PROFIBUS.  This makes them particularly suited for use with S7-200^® S7-300^® S7-400^® systems from Siemens and system 100v, 200v, 300v, from VIPA.

PROFIBUS DP interface means that the panels can be connected to any PLC system with a PROFIBUS network.  Siemens S5 115U, S5 135U, S5 155U can all be connected,  Allen-Bradley, Schneider, GE, Omron, KOYO all have options of PROFIBUS connection.

This is your lowest cost option in Australia for Operator panels suited to MPI network connection for S7 from Siemens.

Technical Data

HMI 555

Display

 mono STN / CCFL

Resolution

240 x 128 dots (5.5")

 Lines x Characters

 16x40 / 8x20 / 4x10

Size of view

 123 x 68mm

Size of characters in mm

   x 1 / x 2 / x 4

3 x 4 / 6 x 8 / 12 x 16

Network

Integrated¹

optional²

^{MSP (multi serial port 25 pin)}

^{Serial port ASP ( 15 pin )}

^{Parallel port LPT}

¹PROFI DP + MPI

Network server, Network client

²Interbus S

RS232 / 422 / 485 / TTY-20mA

RS232/RS485

Centronics

Multilingual

8 languages

Password levels

10

Password bit

8 bit

Pages

1024

Buttons

160 x page

Dimensions

width x height x length

installation cross sect

Weight

210 x 158 x 54mm

198 x 148 mm

1.3kg

Ordering info

VIPA 555

HMI Win Programming tool

HMI WIN - set (software and cable)

VIPA HMI555

VIPA HMIWIN

VIPA HMIWINSET
