VIPA 300V   >>   S7-300® system solutions

Programmed by STEP®7 from Siemens

System 300v, programmed by STEP®7 from Siemens.  See above menu for a full list of all digital and analogue modules for the S7-300®.

This is your lowest cost option in Australia for S7-300® components and solutions.

Don't own the software?..   that's OK,  we also supply Programming software ..  click here

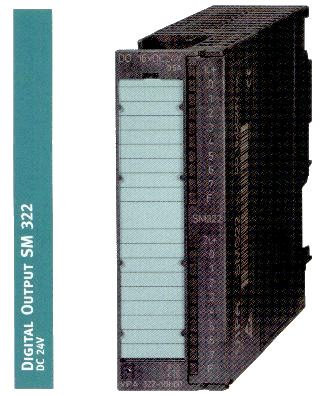

VIPA, S7-300 from Siemens I/O.
Technical Data 322-1BH00 322-1BL00
Number of outputs 16 32

Nominal Load voltage DC 24V DC24V
Output current per channel at "1" 0,5 A, short circuit proof 0,5 A, short circuit proof
Output peak current per channel at "1" 1,25 A 1,25 A

Polarity reversal protection YES YES
Potential isolation YES YES
Current consumption L+ (no load) 30 mA 30 mA
Supply voltage int. bus DC 5 V DC 5 V
Current consumption int. bus 100 mA 200 mA
Technical Data 322-1HH00
Number of outputs 16

Nominal Load voltage DC30V / AC 230V
Output current per channel at "1" 2:00 AM
Output peak current per channel at "1" 3:00 AM

Polarity reversal protection YES
Potential isolation YES
Current consumption L+ (no load) 150 mA
Supply voltage int. bus DC 5 V
Current consumption int. bus 80 mA
Available types:
VIPA 322-1BH00 SM 322, DO 16xDC 24V, potential isolated
VIPA 322-1BL00 SM 322, DO 32xDC 24V, potential isolated
VIPA 322-1HH00 SM 322, DO 16 x Relay, potential isolated
