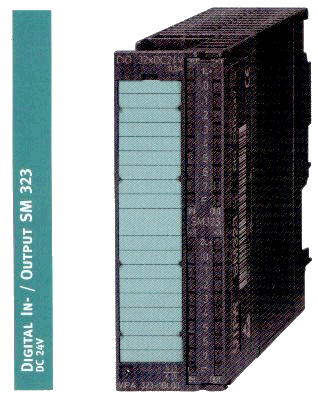

VIPA, S7-300 from Siemens I/O.
Technical Data 323-1BH00/BL 323-1BL00

Number of Inputs 0..16 16
Number of Outputs 16..0 16

Nominal Input Voltage DC 24 V DC 24 V
Input Voltage at "0" 0..5 V 0..5 V
Input Voltage at "1" 12..30 V 12..30 V
Delay time 3 ms 3 ms
Input current at "1" typ. 7 mA typ. 7 mA

Nominal load voltage DC 24 V DC 24 V
Output current per channel 0,5 Amp. short circuit proof 0,5 Amp. short circuit proof
Output peak current per channel at "1" 1,25 A 1,25 A

Polarity reversal protection yes yes
Potential isolation yes yes
Current consumption L+ (no load) 30 mA 30 mA
Supply Voltage int. bus DC 5 V DC 5 V
Current consumption int. bus 100 mA 130 mA
Avilable Types:
VIPA 323-1BH00/BL SM 323, DIO 16 x DC 24 V, potential isolated
VIPA 323-1BL00 SM323, DI 16 x DC 24 V + DO 16 x DC 24 V, potential isolated
