VIPA 300V   >>   S7-300® system solutions

Programmed by STEP®7 from Siemens

System 300v, programmed by STEP®7 from Siemens.  See above menu for a full list of all digital and analogue modules for the S7-300®.

This is your lowest cost option in Australia for S7-300® components and solutions.

Don't own the software?..   that's OK,  we also supply Programming software ..  click here

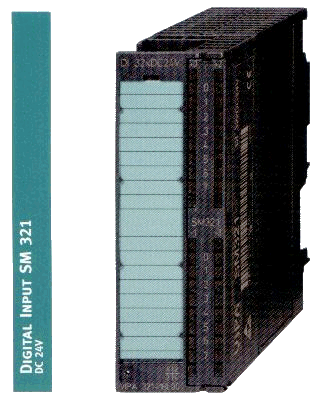

VIPA, S7-300 from Siemens I/O.

Technical Data 321-1BH00 321-1BL00
Number of inputs 16 32

Nominal input voltage DC 24V DC 24V
Input voltage at "0" 0..5V 0..5V
Input voltage at "1" 12..30V 12..30V
Delay time 3ms 3ms
Input signal at "1" typ. 7 mA typ. 7 mA
Available types:
VIPA 321-1BH00 SM 321, DI 16xDC 24V, potential isolated
VIPA 321-1BL00 SM 321, DI 32xDC 24V, potential isolated
