VIPA 300V   >>   S7-300® system solutions

Programmed by STEP®7 from Siemens

System 300v, programmed by STEP®7 from Siemens.  See above menu for a full list of all digital and analogue modules for the S7-300®.

This is your lowest cost option in Australia for S7-300® components and solutions.

Don't own the software?..   that's OK,  we also supply Programming software ..  click here
VIPA, S7-300 from Siemens I/O.
Technical Data 332-7ND00

Number of outputs 4

Output range
> Voltage 1..5 V
  0..10 V
  +/-10 V
> Current 0..20 mA
  4..20 mA
  +/-20 mA

Resolution 16 Bit

Polarity reversal protection yes
Potential isolation yes
Supply voltage L+ DC 24 V
Supply voltage int. bus DC 5 V
Current consumption int. bus 120 mA
Available types:

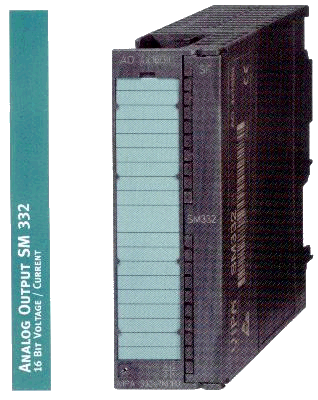

VIPA 332-7ND00 SM 332, AO 4x16Bit, Voltage / Current
