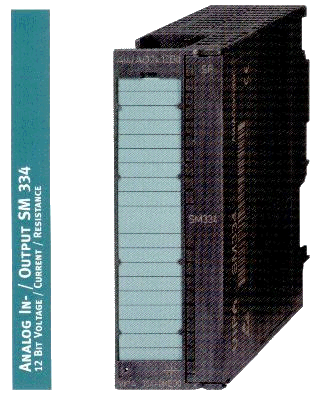

VIPA, S7-300 from Siemens I/O.
Technical Data 334-0CE00 334-0KE00

Number of inputs 4
Number of inputs (resistance)   4

Input range (input resistance)
> Voltage 0..10 V (100kOhm) 0..10 V (100 kOhm)
> Current 0..20 mA (50 kOhm)
> Resistance   10 KOhm
> Resistance thermometer   Pt100

Resolution 12 Bit 12 Bit

Number of outputs 2 2

Output range
> Voltage 0..10 V 0..10 V
> Current 0..20 mA

Resolution 12 Bit 12 Bit

Polarity reversal protection yes yes
Potential isolation yes yes
Supply voltage L+ DC 24 V DC 24 V
Supply voltage int. bus DC 5 V DC 5 V
Current consumption int. bus 120 mA 120 mA
Available types:
VIPA 334-0CE00 SM 334, AI 4x12Bit, Voltage / Current AO 2x12Bit, Voltage / Current
VIPA 334-0KE00 SM 334, AI 4x12Bit, Voltage/Current/Resistance/Pt100 AO 2x12Bit, Voltage
