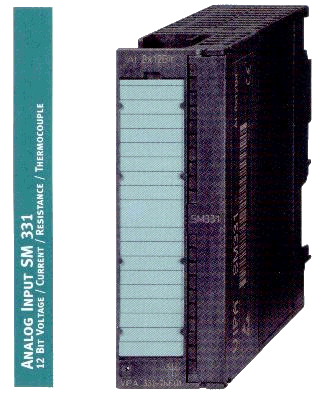

VIPA, S7-300 from Siemens I/O.
Technical Data 331-7KF00 331-7KB00
Number of inputs (voltage/current) 8 2
Number of inputs (resistance) 4 1

Input range (input resistance)
> voltage +/-80mV, +/-250mV, +/-500mV, +/-1V (10MOhm) +/-80mV, +/-250mV, +/-500mV, +/-1V (10MOhm)
  +/- 2,5V (10 kOhm) +/- 2,5V (10 kOhm)
  +/-5V (100MOhm) +/-5V (100MOhm)
  1..5V (100MOhm) 1..5V (100MOhm)
  +/-10V (100MOhm) +/-10V (100MOhm)
> current +/-10mA (18 Ohm) +/-10mA (18 Ohm)
  +/-3,2mA (18 Ohm) +/-3,2mA (18 Ohm)
  +/-20mA (18 Ohm) +/-20mA (18 Ohm)
  0..20mA (18 Ohm) 0..20mA (18 Ohm)
  4..20mA (18 Ohm) 4..20mA (18 Ohm)
> resistance 150W (10 MOhm) 150W (10 MOhm)
  300W (10 MOhm) 300W (10 MOhm)
  600W (10 MOhm) 600W (10 MOhm)
> thermocouple Type E, J, K,N, S (10 MOhm) Type E, J, K,N, S (10 MOhm)
> resistance thermometer PT100, Ni100 (10 MOhm) PT100, Ni100 (10 MOhm)

Resolution 12 Bit 12 Bit

Operational limit 1% 1%
Basic error 0,6% 0,6%
Out of limit alarm parameterizable parameterizable
Diagnostics alarm parameterizable parameterizable

Polarity reversal protection yes yes
Supply voltage int. bus DC 5 V DC 5 V
Current consumption int. bus 120 mA 120 mA
Available types:
VIPA 331-7KF00 SM 331, AI 8x12Bit, Multi input
VIPA 331-7KB00 SM 331, AI 2x12Bit, Multi input
