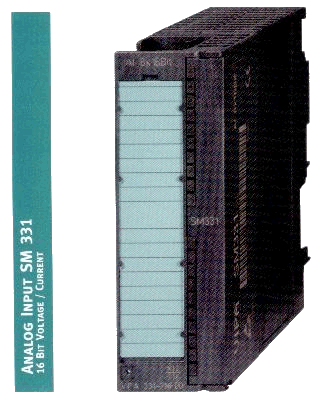

VIPA, S7-300 from Siemens I/O.
Technical Data 331-7NF00
Number of Inputs 8

Input range
> Voltage +/- 5mV (2 MOhm)
  1..5V (2 MOhm)
  +/-10V (2 MOhm)
> Current +/- 20mA (250 Ohm)
  0..20mA (250 Ohm)
  4..20mA (250 Ohm)

Operational limit (voltage) 0,1%
Operational limit (current) 0,3%
Basic error (voltage) 0,05%
Basic error (current) 0,05%
Out of limit alarm parameterizable
Diagnostic alarm parameterizable

Resolution 16 Bit

Polarity reversal protection yes
Supply voltage int. bus DC 5V
Current consumption int. bus 120mA
Available types:
VIPA 331-7NF00 SM 331, AI 8x16Bit, Voltage / Current
