VIPA 200V - Ethernet TCP/IP slave module

For direct I/O connection to TCP/IP.  Allows for the use of low cost System 200V Digital and Analogue I/O as distributed I/O

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

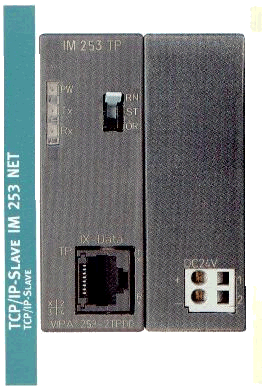

VIPA, System200V Ethernet I/O node.
Technical Data -2TP00
Interface RJ45
Transmission rate 10 Mbit/s
Connectable modules max. 32
Order type
TCP/IP Send, Receive, Fetch (active/passive)
  Write (active/passive)
UDP Multicast, Broadcast
H1 Send, Receive, Multicast, Broadcast
  Fetch (active/passive), Write (active/passive)
Supply Voltage L+ 24VDC
Current consumption L+ 1.4A
Current supply int. bus 3.5A

Order number Type
VIPA 253-2TP00 IM 253 TCP/IP
VIPA SW-WinNCS Parameterisation software for TCP/IP and H1
