VIPA 200V - SSI  module

For direct connection to other SSI devices .  Allows for the use of low cost System 200V PLC with SSI devices.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

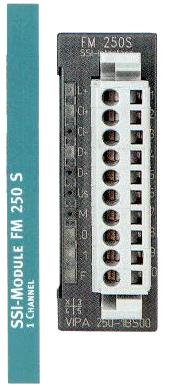

VIPA, System200V absolute position counter/decoder.
Technical data -1BS00
Number of inputs 1
Interface RS422
Transmission rate 100, 300, 600 kBaud
Data word range 12 Bit or 24 Bit
Input data 4 Byte
Output data 4 Byte
Operating mode Gray or Binary code
Number of dig. outputs 2
Supply voltage L+ DC24V
Supply voltage int. bus 5 V
Current consumption int. bus 200mA


Order number Type
VIPA 250-1BS00 FM 250, 1xSSI
