VIPA 200V - PROFIBUS DP slave module

For direct I/O connection to PROFIBUS® DP.  Allows for the use of low cost System 200V Digital and Analogue I/O as distributed I/O.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

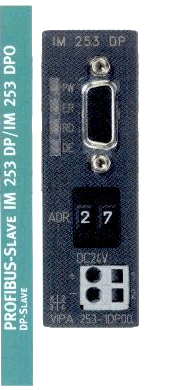

VIPA, System200V Profibus-DP slave interface.

Technical Data -1DP00 -1DP10
Interface RS485: 9pin SubD Fiber Optic: POF/HCS
Transmission rate 9,6 kBaud up to 12 Mbaud 9,6 kBaud up to 12 Mbaud
Connectable modules max. 16 max. 16
max. inputs 256 Byte 256 Byte
max. outputs 256 Byte 256 Byte
Supply voltage L+ 24 VDC 24 VDC
Current consumption L+ 800 mA 800 mA
Current supply int. bus 3.5A 3.5A
Order number Type
VIPA 253-1DP00 IM 253 DP
VIPA 253-1DP10 IM 253 DP0
VIPA SW-WinNCS Parameterization software for Profibus


Application example

VIPA, System200V Profibus-DP slave interface in application.
