VIPA 200V - PROFIBUS Master module

For direct PLC connection to PROFIBUS® DP distributed I/O.  Allows for the use of low cost System 200V Digital and Analogue I/O as distributed I/O, in conjunction with this module and the low cost 200V CPU.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

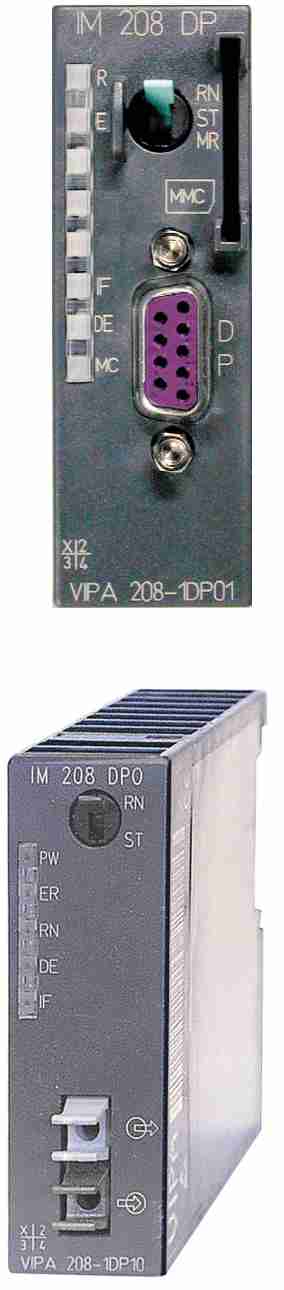

VIPA, System200V Profibus-DP master card.
Technical Data -1DP01 -2DP10
Interface RS485: 9pin SubD Fiber Optic: POF/HCS
Transmission rate 9,6 kBaud up to 12 Mbaud 9,6 kBaud up to 12 Mbaud
Connectable slaves max. 122 (without repeater max. 32) max. 122 (without repeater max. 32)
Parameter memory MMC card PCMCIA card
max. inputs 1024 Byte 1024 Byte
max. outputs 1024 Byte 1024 Byte
Supply voltage int. bus 5 VDC 5 VDC
Current consumption int. bus 380 mA 380 mA
Order number Type
VIPA 208-1DP01 IM 208 DP
VIPA 208-2DP10 IM 208 DP0
VIPA 374-1KH21 PCMCIA Card 256 kByte
VIPA 953-0KX00 MMC, memory module
VIPA SW-WinNCS Parameterization software for Profibus


Application example

VIPA, System200V Profibus-DP master (next to PLC on the right) interface in application.
