VIPA 200V - PC module module

Full PC system that directly communicates to the 200V backplane bus.

Run PC applications onboard your PLC!.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

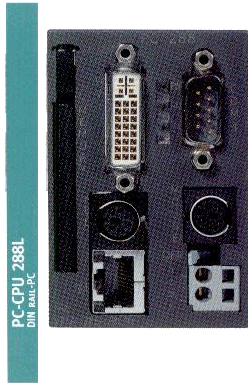

VIPA, System200V powerfull PC. Probably the smallest full build PC (486).
Technical data 2-BL00
CPU STPC Industrial 486DX 66/80 MHz
DRAM/Flash ROM Internal 32Mb / 8 Mb
Compact Flash/HDD external 96 Mb / 540 Mb
COM1 RS232, RS422, RS485
Flat Panel (DVI) TFT max 1024 x 1024
Video Monitor (DVI) Max. 1280 x 1024 at 75 MHz
Keyboard/mouse Mini Din
Ethernet interface RJ45 10/100 BaseT
Supply Voltage L+ DC24V
Current Consumption L+ 1.2A
Current supply int. bus 3.5A


Order number Type
VIPA 288-2BL10 486 PC-LAN: 66MHz
VIPA 950-1KS00 Compact Flash socket Type II, 96 Mb
VIPA 950-1KH00 HDD: 540 Mb
