VIPA 200V - InterBus slave module

For direct I/O connection to InterBus.  Allows for the use of low cost System 200V Digital and Analogue I/O as distributed I/O

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

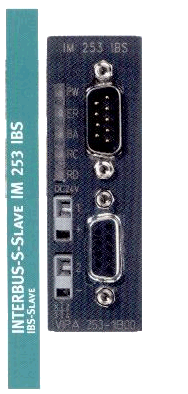

VIPA, System200V Interbus slave interface.
Technical Data -1IB00
Interface RS485: 9pin SubD
Transmission rate 500 kBaud
Connectable modules max. 16
max. inputs 20 Byte
max. outputs 20 Byte
Supply voltage L+ 24 VDC
Current consumption L+ 500 mA
Current supply int. bus 3.5A
Order number Type
VIPA 253-1IB00 IM 253 IBS
