VIPA 200V CPU - Programmed by IEC 1131

IEC 1131-3 base level certified, cross translation possible.

Powerful CPU for the System 200v, programmed by IEC 1131.  See above menu for a full list of all digital and analogue modules for the 200V,  also you will find a complete list of FieldBus cards for DeviceNet®, Profibus®, CANbus, TCP/IP and serial cards to connect to S5 PLC's from Siemens and RS232/485/422 devices.   This is your lowest cost option in Australia when it comes to quality PLC systems programmed by software you may already own!!. - STEP®7, STEP®5, IEC1131..

Don't own the software?..   that's OK,  we also supply Programming software..  click here   (coming soon manual for Open PCS)

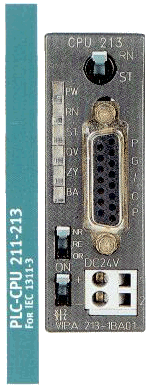

VIPA, System200V IEC-61131-3 programmable PLC series.
Technical Data 211 212 213
Memory 16 Kbyte 128 Kbyte 512Kbyte
Battery buffer/clock yes/yes yes/yes yes/yes
Flag 1024 1024 1024
Input Byte 256 256 256
Output Byte 256 256 256
Processing time typical/k 0.2 ms 0.4 ms 0.4 ms
Supply Voltage L+ DC 24V DC 24V DC 24V
Current consumption L+ 1.5 Amp 1.5 Amp 1.5 Amp
Current supply int. bus 3.5 Amp 3.5 Amp 3.5 Amp
Order number Available Types
VIPA 211-1BA01 CPU 211
VIPA 212-1BA01 CPU 212
VIPA 213-1BA01 CPU 213
VIPA 241-1XY00 CPU Memory module
