VIPA 200V - Digital Input module

Digital input module for the VIPA 200V range of PLC's and remote I/O modules.  By adding a CPU to these I/O cards gives you a very powerful PLC system.

Or  by adding a remote I/O module eg: PROFIBUS®, DeviceNet®, CANbus, InterBus you have a very flexible distributed I/O solution.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

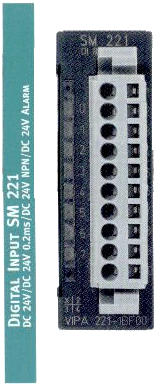

VIPA, System200V 8-channel digital input cards.
Technical Data -1BF00 -1BF10 -1BF50 -1BF20
Nominal input voltage DC24V DC24V DC24V DC24V
Number of inputs 8 8 8 8 interrupts
Input data 1 Byte 1 Byte 1 Byte 1 Byte
Input voltage at "1" 15..30V 15..30V 0..5V 15..30V
Input voltage at "0" 0..5V 0..5V 15..30V 0..5V
Delay time 3ms 0.2ms 3ms 3ms
Supply voltage int. bus 5V 5V 5V 5V
Current consumption int. bus 20mA 20mA 20mA 140mA


Order Number Type
VIPA 221-1BF00 DI 8xDC 24V
VIPA 221-1BF10 DI 8xDC 24V 0.2ms
VIPA 221-1BF50 DI 8xDC 24V NPN
VIPA 221-1BF20 DI 8xDC 24V Alarm (Interrupts)
