VIPA 200V - Digital Input module

Digital input module for the VIPA 200V range of PLC's and remote I/O modules.  By adding a CPU to these I/O cards gives you a very powerful PLC system.

Or  by adding a remote I/O module eg: PROFIBUS®, DeviceNet®, CANbus, InterBus you have a very flexible distributed I/O solution.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

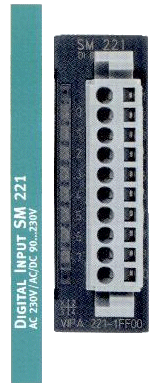

VIPA, System200V 8-channel digital input cards for AC/DC, 90 Volts and up.
Technical Data -1FD00 -1FF20 -1FF30
  AC/DC AC/DC AC/DC
Nominal input voltage 90-240V 60-240V 24-48V
Number of inputs 4 8 8
Channels floating yes -- --
Input data 1 Byte 1 Byte 1 Byte
Input voltage at "1" 90...240V 60...240V 18...48V
Input voltage at "0" 0...35V 0...35V 0...8V
Delay time 25ms 25ms 25ms
Supply voltage int. bus 5V 5V 5V
Current consumption int. bus 80mA 80mA 80mA


Order Number Type
VIPA 221-1FD00 DI 4xAC/DC 90...240V floating
VIPA 221-1FF20 DI 8xAC/DC 60..240V
VIPA 221-1FF30 DI 8xAC/DC 24-48V
