VIPA 200V - DeviceNet® slave module

For direct I/O connection to DeviceNet®.  Allows for the use of low cost System 200V Digital and Analogue I/O as distributed I/O

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

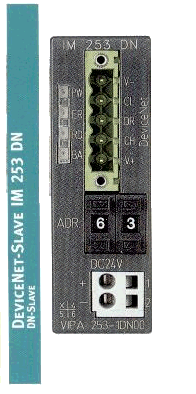

VIPA, System200V DeviceNet slave interface.
Technical Data -1DN00
Interface DeviceNet Open Style
Transmission rate 125, 250, 500 kBaud
Connectable modules max. 32
max. inputs 256 Byte
max. outputs 256 Byte
Supply voltage L+ 24 VDC
Current consumption L+ 800 mA
Current supply int. bus 3.5A

Order number Type
VIPA 253-1DN00 IM 253 DN


Application example

VIPA, System200V DeviceNet slave interface in application....... VIPA, System200V DeviceNet slave interface in application.
