VIPA 200V High-speed counter

High Speed Counter card for the System 200v  See above menu for a full list of all digital and analogue modules for the 200V,  also you will find a complete list of FieldBus cards for DeviceNet®, Profibus®, CANbus, TCP/IP and serial cards to connect to S5 PLC's from Siemens and RS232/485/422 devices.   This is your lowest cost option in Australia when it comes to quality PLC systems programmed by software you may already own!!. - STEP®7, STEP®5, IEC1131..

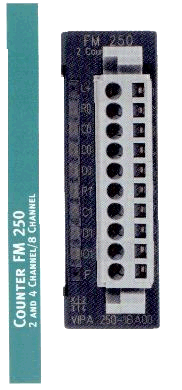

VIPA, System200V high speed 2,4 or 8 channel counter cards.
Technical data -1BA00
Number of counters 2 or 4
Counter range 32 Bit or 16 Bit
Input Data 10 Byte
Output Data 10 Byte
Operating modes Up/Downwards counting
  Comparison function
  Auto-Reload function
  Encoder pulse
  Period duration
  Frequency measuring
Counting frequency 1MHz
Number of dig. Outputs 2
Supply voltage L+ DC24V
Supply voltage int. bus 5 V
Current consumption int. bus 80mA


Order number Type
VIPA 250-1BA00 FM 250, 2x32 Bit counter
