VIPA 200V Serial interface card

RS232, TTY, RS422, RS485 serial interface card for the System 200v.  See above menu for a full list of all digital and analogue modules for the 200V,  also you will find a complete list of FieldBus cards for DeviceNet®, Profibus®, CANbus, TCP/IP and serial cards to connect to S5 PLC's from Siemens and RS232/485/422 devices.

This is your lowest cost option in Australia when it comes to quality PLC systems programmed by software you may already own!!. - STEP®7, STEP®5, IEC1131..

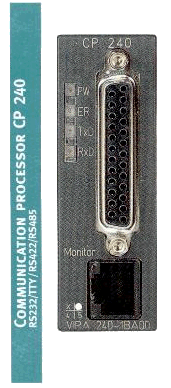

VIPA, System200V Serial communication cards.
Technical Data -1BA00 -1CA00
Number of interfaces 1 1
Interface RS232/TTY RS422/485
Transmission rate 150 Baud up to 115.200 Baud 150 Baud up to 115.200 Baud
Protocol ASCII, STX/ETX, 3964(R),
3964 (R) with RK512		 ASCII, STX/ETX, 3964(R),
3964 (R) with RK512
input data 16 Byte 16 Byte
output data 16 Byte 16 Byte
Supply voltage int. bus 5 VDC 5 VDC
Current consumption int. bus 200 mA 200 mA
Order number Type
VIPA 240-1BA00 CP 240, RS232
VIPA 240-1CA00 CP 240, RS422/485
VIPA UPI-FOX2 Diagnostic-Adapter incl. software
