VIPA 200V - CANbus - CANopen slave module

For direct I/O connection to CANbus.  Allows for the use of low cost System 200V Digital and Analogue I/O as distributed I/O

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

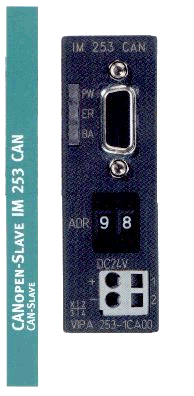

VIPA, System200V Open CAN bus slave interface.
Technical Data -1CA00
Interface RS485: 9pin SubD
Transmission rate 10 kBaud up to 1 Mbaud
Connectable modules max. 16
max. inputs 32 Byte
max. outputs 32 Byte
Supply voltage L+ 24 VDC
Current consumption L+ 700 mA
Current supply int. bus 3.5A
Order number Type
VIPA 253-1CA00 IM 253 CAN
