VIPA 200V - Analogue Output module

Analogue output module for the VIPA 200V range of PLC's and remote I/O modules.  By adding a CPU to these I/O cards gives you a very powerful PLC system.

Or  by adding a remote I/O module eg: PROFIBUS®, DeviceNet®, CANbus, InterBus you have a very flexible distributed I/O solution.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

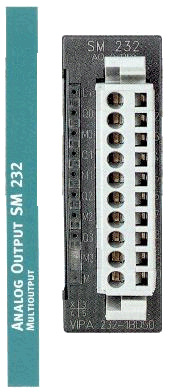

VIPA, System200V Analog output card 4-channel, multi source.
Technical data -1BD50
Number of inputs 4
Output data 8 byte
Output range Voltage: 0..10V, +/-10V, 1..5V
  Current: 0/4..20mA, +/-20mA
Resolution 12 Bit
Actuator Resistance Voltage: min 1 kOhm
  Current: max 500 Ohm
Supply voltage int. bus 5 V
Current consumption int. bus 30 mA


Order number Type
VIPA 232-1BD50 AI 4 x 12 bit, Multi Output
