VIPA 200V - Analogue Input module

Analogue input module for the VIPA 200V range of PLC's and remote I/O modules.  By adding a CPU to these I/O cards gives you a very powerful PLC system.

Or  by adding a remote I/O module eg: PROFIBUS®, DeviceNet®, CANbus, InterBus you have a very flexible distributed I/O solution.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

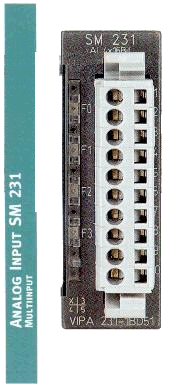

VIPA, System200V Analog input card 4-channel, multi source.
Technical data -1BD52
Number of inputs 4 or 2 (4 wire)
Input data 8 byte
Input range Voltage: +/-10V, +/-4V, +/-400mV
  Current: 0/4..20mA, +/-20mA
  Temp.: PT100, PT1000, Ni100, Ni1000 (all 2 or 4 wire)
  Resist.: 60, 600, 3000 Ohm (all 2 or 4 wire)
  Thermo.: J, K, N, R, T, S (compensation connectable)
Resolution 12 Bit / 16 Bit
Input Resistance Voltage: 100 kOhm
  Current: 50 Ohm
Integration time 5..70 mS
Supply voltage int. bus 5 V
Current consumption int. bus 2400 mA


Order number Type
VIPA 231-1BD52 AI 4 x 12/16 bit, Multi input
