VIPA 200V - Analogue Input module

Analogue input module for the VIPA 200V range of PLC's and remote I/O modules.  By adding a CPU to these I/O cards gives you a very powerful PLC system.

Or  by adding a remote I/O module eg: PROFIBUS®, DeviceNet®, CANbus, InterBus you have a very flexible distributed I/O solution.

Use the menu above to choose other I/O cards, CPU's or Fieldbus cards.

   This is your lowest cost option in Australia when it comes to quality PLC systems and Distributed I/O.

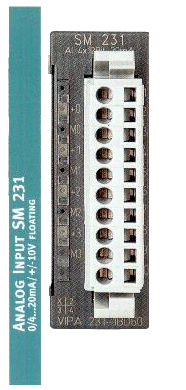

VIPA, System200V Analog input cards 4-channel, floating (channels isolated).
Technical data -1BD60
Number of inputs 4
Channels floating yes
Input data 8 byte
Input range 0/4..20 mA
Resolution 12 Bit
Input Resistance 20 Ohm
Integration time 8.6 ms
Supply voltage int. bus 5 V
Current consumption int. bus 280 mA


Order number Type
VIPA 231-1BD60 AI 4 x 12 bit, 0/4..20 mA
