VIPA 200V CPU - Programmed by STEP®7 from Siemens

Powerful CPU for the System 200v, programmed by STEP®7 from Siemens.



Options:

  • Fast Scan Time

  • Large memory

  • MMC slot to store complete STEP®7 project ( incl Symbols and comments).

  • PROFIBUS DP port onboard CPU 12Mb/s

  • PROFIBUS DP add on card also avail.

  • TCP/IP port onboard CPU supports "send" "receive" with Siemens S5 and S7.

  • 1024 I/O capable

  • 2047 Data Blocks available

  • Unlimited IEC Timers and Counters

  • 32 Cards in one rack or 4 Tier

  • MPI port with Global Data and Siemens Operator Panel / VIPA Operator Panel connections.

  • MPI peer to peer communications with S7-300® from Siemens.

  • Programmable with STEP®7 and the Siemens MPI converter,  or use the VIPA Green cable (only $100.00)

See above menu for a full list of all digital and analogue modules for the 200V,  also you will find a complete list of FieldBus cards for DeviceNet, Profibus, CANbus, TCP/IP and serial cards to connect to S5 PLC's from Siemens and RS232/485/422 devices.   This is your lowest cost option in Australia when it comes to quality PLC systems programmed by software you may already own!!. - STEP®7, STEP®5, IEC1131..

Don't own the software?..   that's OK,  we also supply Programming software..  click here

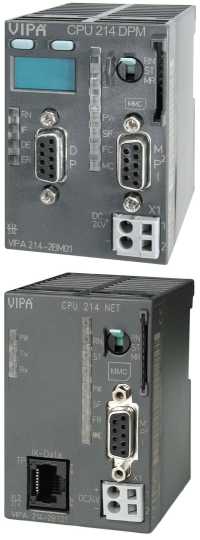

 VIPA, System200V Step-7 from Siemens programmable PLC series.
Technical Data 214 215 216
Memory                  work 48 Kbyte 96 Kbyte 128 Kbyte
                               load 80 Kbyte 144 Kbyte 192 Kbyte
Battery buffer/clock yes/yes yes/yes yes/yes
Flag/S-Flag bits 2048 2048 2048
Digital I/O 1024 1024 1024
Analogue I/O 256 256 256
Data Blocks 2047 2047 2047
Timers  (unlimited IEC) 128 128 128
Counters (unlimited IEC) 256 256 256
Processing time typical/k 0.18 ms 0.18 ms 0.18 ms
Supply Voltage L+ DC 24V DC 24V DC 24V
Current consumption 24VDC L+ 1.5 Amp 1.5 Amp 1.5 Amp
Current supply internal bus 3.5 Amp 3.5 Amp 3.5 Amp
Order number Available Types
VIPA 214-1BA02 CPU 214 with MPI
VIPA 215-1BA02 CPU 215 with MPI
VIPA 216-1BA02 CPU 216 with MPI
VIPA 214-2BP02 CPU 214 with MPI, PROFIBUS DP slave
VIPA 216-2BP02 CPU 215 with MPI, PROFIBUS DP slave
VIPA 216-2BP02 CPU 216 with MPI, PROFIBUS DP slave
VIPA 214-2BM02 CPU 214 with MPI, PROFIBUS DP Master
VIPA 215-2BM02 CPU 215 with MPI, PROFIBUS DP Master
VIPA 216-2BM02 CPU 216 with MPI, PROFIBUS DP Master
VIPA 214-2BT02 CPU 214 with MPI, TCP/IP port
VIPA 215-2BT02 CPU 215 with MPI, TCP/IP port
VIPA 216-2BT02 CPU 216 with MPI, TCP/IP port
VIPA 241-1XY10 CPU Memory module
VIPA SW-WinPLC7 Programming software for Step-7 from Siemens Programming software for your S7 PLC's for less than $1000 ! >>datasheet<<.
