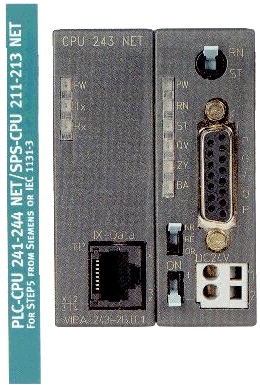

VIPA 200V CPU - Programmed by STEP®5 from Siemens

With Ethernet TCP/IP port onboard !

Powerful CPU for the System 200v, programmed by STEP®5 from Siemens.  See above menu for a full list of all digital and analogue modules for the 200V,  also you will find a complete list of FieldBus cards for DeviceNet, Profibus, CANbus, TCP/IP and serial cards to connect to S5 PLC's from Siemens and RS232/485/422 devices.   This is your lowest cost option in Australia when it comes to quality PLC systems programmed by software you may already own!!. - STEP®7, STEP®5, IEC1131..

Don't own the software?..   that's OK,  we also supply Programming software..  click here
VIPA, System200V Step-5 from Siemens programmable PLC series.
Technical Data 241 242 243 244
Memory 8 Kbyte 32 Kbyte 52 Kbyte 104 Kbyte
Battery buffer/clock yes/no yes/no yes/yes yes/yes
Flag/S-Flag 1024/0 2048/0 2048/0 2048/8192
Timer/Counter 32/32 64/64 128/128 128/128
Address. I/O digital 448 512 1024 1024
Address. I/O analog 16 32 256 256
Processing time typical/k 1.8 ms 1.8 ms 1.8 ms 1.8 ms
Supply Voltage L+ DC 24V DC 24V DC 24V DC 24V
Current consumption L+ 1.5 Amp 1.5 Amp 1.5 Amp 1.5 Amp
Current supply int. bus 3.5 Amp 3.5 Amp 3.5 Amp 3.5 Amp
Technical Data 211 212 213
Memory 16 Kbyte 128 Kbyte 512Kbyte
Battery buffer/clock yes/yes yes/yes yes/yes
Flag 1024 1024 1024
Input Byte 256 256 256
Output Byte 256 256 256
Processing time typical/k 0.2 ms 0.4 ms 0.4 ms
Supply Voltage L+ DC 24V DC 24V DC 24V
Current consumption L+ 1.5 Amp 1.5 Amp 1.5 Amp
Current supply int. bus 3.5 Amp 3.5 Amp 3.5 Amp
Order type
TCP/IP Send, Receive, Fetch (active/passive)
Write (active/passive)
  Write (active/passive)
UDP Multicast, Broadcast
H1 Send, Receive, Multicast, Broadcast
  Fetch (active/passive), Write (active/passive)
Order Nr. Type
VIPA 241-2BT01 CPU 241 TCP/IP
VIPA 242-2BT01 CPU 242 TCP/IP
VIPA 243-2BT01 CPU 243 TCP/IP
VIPA 244-2BT01 CPU 244 TCP/IP
VIPA 211-2BT01 CPU 211 TCP/IP
VIPA 212-2BT01 CPU 212 TCP/IP
VIPA 213-2BT01 CPU 213 TCP/IP
VIPA 244-1XY00 CPU Memory module
VIPA SW-WinNCS Parameterization software for TCP/IP & H1


Application example

VIPA, System200V PLC with TCP/IP interface interface in application.
