VIPA 200V CPU - Programmed by STEP®5 from Siemens

Powerful CPU for the System 200v, programmed by STEP®5 from Siemens.  See above menu for a full list of all digital and analogue modules for the 200V,  also you will find a complete list of FieldBus cards for DeviceNet®, Profibus®, CANbus, TCP/IP and serial cards to connect to S5 PLC's from Siemens and RS232/485/422 devices.   This is your lowest cost option in Australia when it comes to quality PLC systems programmed by software you may already own!!. - STEP®7, STEP®5, IEC1131..

Don't own the software?..   that's OK,  we also supply Programming software..  click here

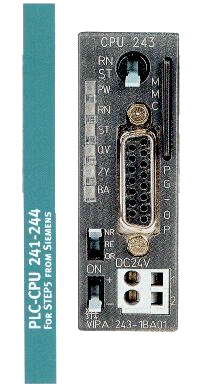

VIPA, System200V Step-5 from Siemens programmable PLC series.
Technical Data 241 242 243 244
Memory 8 Kbyte 32 Kbyte 52 Kbyte 104 Kbyte
Battery buffer/clock yes/no yes/no yes/yes yes/yes
Flag/S-Flag 1024/0 2048/0 2048/0 2048/8192
Timer/Counter 32/32 64/64 128/128 128/128
Address. I/O digital 448 512 1024 1024
Address. I/O analog 16 32 256 256
Processing time typical/k 1.8 ms 1.8 ms 1.8 ms 1.8 ms
Supply Voltage L+ DC 24V DC 24V DC 24V DC 24V
Current consumption L+ 1.5 Amp 1.5 Amp 1.5 Amp 1.5 Amp
Current supply int. bus 3.5 Amp 3.5 Amp 3.5 Amp 3.5 Amp
Order number Available Types
VIPA 241-1BA01 CPU 241
VIPA 242-1BA01 CPU 242
VIPA 243-1BA01 CPU 243
VIPA 244-1BA01 CPU 244
VIPA 241-1XY00 CPU Memory module
