PROFIBUS®

Digital Output Blocks

Lowest cost I/O blocks in Australia for PROFIBUS®.  Many different options,  the ones below have digital outputs onboard the one compact block.  See above menu for a full list of all digital and analogue modules for the 100V.

   This is your lowest cost PROFIBUS® I/O option in Australia.

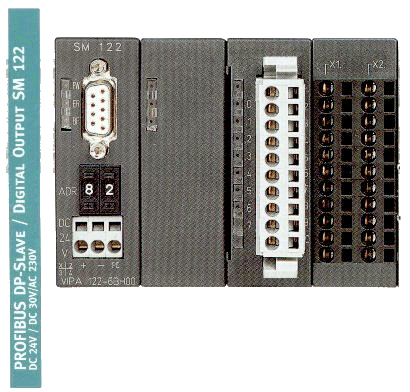

  VIPA, System100V digital Output Profibus-DP block.
Technical Data -4BH00 -6BH00 -6HH00 -6BL00
Interface RS485: 9 pol. SubD RS485: 9 pol. SubD RS485: 9 pol. SubD RS485: 9 pol. SubD
Transmission rate 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud
Module width 4 tier 6 tier 6 tier 6 tier
Number of Outputs 16 16 16 Relay 32
Input Data 2 Byte 2 Byte 2 Byte 4 Byte
Number of terminals xx 4x11 xx xx
Input voltage at "1" 15..30V 15..30V 15..30V 15..30V
Input voltage at "0" 0..5V 0..5V 0..5V 0..5V
Delay time 3 ms 3 ms 3 ms 3 ms
Supply voltage L+ DC24V DC24V DC24V DC24V
Current consumption L+ 55 mA 55 mA 55 mA 55 mA
Available types
Order number Type
VIPA 122-4BH00 DO 16xDC 24V, 1.2A
VIPA 122-6BH00 DO 16xDC 24V, 1.2A with 4x11 terminals
VIPA 122-6HH00 DO 16xRelay COM
VIPA 122-6BL00 DO 32xDC 24V, 1.2A
VIPA HB 100 Handbook System100V
