PROFIBUS®   Digital Input and Output Blocks

Lowest cost I/O blocks in Australia for PROFIBUS®.  Many different options,  the ones below have both digital inputs and outputs onboard the one compact block.  See above menu for a full list of all digital and analogue modules for the 100V.

   This is your lowest cost PROFIBUS® I/O option in Australia.

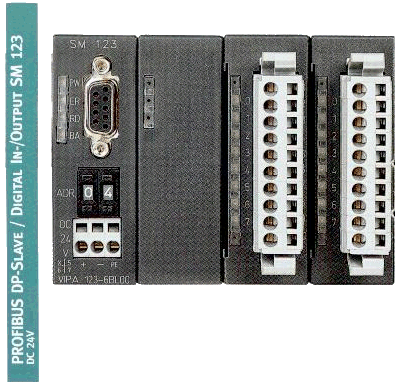

  VIPA, System100V digital Input/Output Profibus-DP block.
Technical Data -4BF00 -4BH00 -6BH00 -6BL00
Interface RS485: 9 pol. SubD RS485: 9 pol. SubD RS485: 9 pol. SubD RS485: 9 pol. SubD
Transmission rate 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud
Module width 4 tier 4 tier 6 tier 6 tier
Number of Inputs 0..8 8 8 16
Number of Outputs 0..8 8 8 16
Input Data 1 Byte 1 Byte 1 Byte 2 Byte
Output Data 1 Byte 1 Byte 1 Byte 2 Byte
Number of terminals 2x11 xx 4x11 xx
Nominal Input Voltage DC 24V DC 24V DC 24V DC 24V
Input voltage at "1" 15..30V 15..30V 15..30V 15..30V
Input voltage at "0" 0..5V 0..5V 0..5V 0..5V
Delay time 3 ms 3 ms 3 ms 3 ms
Nominal Load Voltage DC 24V DC 24V DC 24V DC 24V
Current Output per channel 1.2A 1.2A 1.2A 1.2A
Supply voltage L+ DC24V DC24V DC24V DC24V
Current consumption L+ 55 mA 55 mA 55 mA 55 mA
Available types
Order number Type
VIPA 123-4BF00 DIO 8xDC 24V, 1.2A
VIPA 123-4BH00 DI 8xDC 24V/DO 8xDC 24V, 1.2A
VIPA 123-6BL00 DI 8xDC 24V/DO 8xDC 24V, 1.2A, with 4x11 terminals
VIPA 123-6BL00 DI 16xDC 24V/DO 16xDC 24V, 1.2A
VIPA HB 100 Handbook System100V
