PROFIBUS®

Digital Input Blocks

Lowest cost Input blocks in Australia for PROFIBUS®.  Many different options,  the ones below are digital input.  See above menu for a full list of all digital and analogue modules for the 100V.

   This is your lowest cost PROFIBUS® I/O option in Australia.

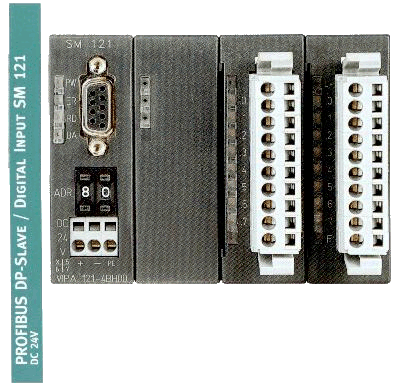

  VIPA, System100V digital Input Profibus-DP block.
Technical Data -4BH00 -6BH00 -6BL00
Interface RS485: 9 pol. SubD RS485: 9 pol. SubD RS485: 9 pol. SubD
Transmission rate 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud
Module width 4 tier 6 tier 6 tier
Number of Inputs 16 16 32
Input Data 2 Byte 2 Byte 4 Byte
Number of terminals xx 4x11 xx
Input voltage at "1" 15..30V 15..30V 15..30V
Input voltage at "0" 0..5V 0..5V 0..5V
Delay time 3 ms 3 ms 3 ms
Supply voltage L+ DC24V DC24V DC24V
Current consumption L+ 55 mA 55 mA 55 mA


Available types
Order number Type
VIPA 121-4BH00 DI 16xDC 24V
VIPA 121-6BH00 DI 16xDC 24V with 4x11 terminals
VIPA 121-6BL00 DI 32xDC 24V
VIPA HB 100 Handbook System100V
