PROFIBUS®   Digital and Analogue combination Blocks

Lowest cost I/O blocks in Australia for PROFIBUS®.  Many different options,  the ones below have both digital and analogue I/O onboard the one compact block.  See above menu for a full list of all digital and analogue modules for the 100V.

   This is your lowest cost PROFIBUS® I/O option in Australia.

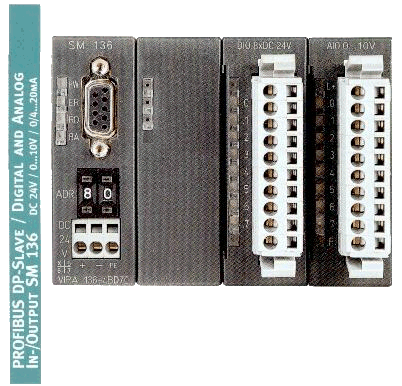

  VIPA, System100V digital Input/Output and Analog Profibus-DP block.
Technical Data -4BB60 -4BD60 -4BD70
Interface RS485: 9 pol. SubD RS485: 9 pol. SubD RS485: 9 pol. SubD
Transmission rate 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud 9,6kBaud .. 12MBaud
Module width 4 tier 4 tier 4 tier
Number of dig. Inputs 8 8 8
Number of Ana. Inputs 2 4 4
Number of Ana. Outputs 2 xx 2
Input Data 5 Byte 9 Byte 9 Byte
Output Data 5 Byte 1 Byte 5 Byte
Number of terminals xx xx xx
Nominal Input Voltage DC 24V DC 24V DC 24V
Input voltage at "1" 15..30V 15..30V 15..30V
Input voltage at "0" 0..5V 0..5V 0..5V
Delay time 3 ms 3 ms 3 ms
Nominal Load Voltage DC 24V DC 24V DC 24V
Current Output per channel 1.2A 1.2A 1.2A
Supply voltage L+ DC24V DC24V DC24V
Current consumption L+ 55 mA 55 mA 55 mA
Input Range 0/4..20 mA 0/4..20 mA 0..10 V
Output range 0/4..20 mA xx 0..10 V
Resolution 12 Bit 12 Bit 12 Bit
Integration time 3 ms 3 ms 3 ms
Input resistance 100 Ohm 100 Ohm 20 kOhm
Actuator resistance max. 500 Ohm max. 500 Ohm max. 500 Ohm
Available types
Order number Type
VIPA 136-4BB60 DIO 8xDC 24V, 1.2A/ AI 2xAO 2x0/4..20mA
VIPA 136-4BD60 DIO 8xDC 24V, 1.2A/AI 4x 0/4..20mA
VIPA 136-4BD70 DIO 8xDC24V, 1.2A/AI4x/AO 2x0..10V
VIPA HB 100 Handbook System100V
