SPEED7 314ST/DPM -512kB
Part No: VIPA 314-6CF23
.
CPU 314ST/DPM – SPEED7 Technology


8...16 Digital Input configurable
8...0 Digital Outputs 0.5amp configurable
4 AnIn, 12bit voltage and current
2 AnOut, 12bit voltage and current
1 PT100
4 counters (100Khz)

Programmed by STEP7 from Siemens, TIA Portal from Siemens, SPEED7 Studio from VIPA or WinPLC7 from VIPA
DC 24V
512kByte memory, expandable up to 2MByte memory, (50% program + 50% data)
MPI interface, 187.5 to 12Mb!
MMC slot,
real time clock,
SPEED bus,
8192/8192byte I/O address area
512 timers (IEC timers unlimited)
512 Counters (IEC Counters unlimited)
8192 flag byte
Firmware upgrade via MMC
Ethernet interface for PG/OP communication, up to 4 connections
Profibus-DP master, 12MBaud, up to 126 slaves,
The new SPEED7 CPU's from VIPA are the fastest PLC in the world, more than 10x faster than the Siemens S7-400 CPU's the VIPA SPEED7 can handle the biggest applications. The memory is not fixed in size, it is expandable by purchasing a MCC memory upgrade, so your plant cost life cycle is reduced.

Don't forget a 40pin front connector.

Click for Features Matrix

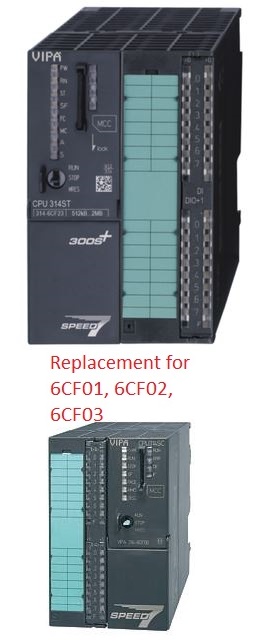

Compatible with old part number VIPA 314-6CF01, VIPA 314-6CF02, VIPA 314-6CF03 using software CPU 317-2AJ10 rather than 318-2AG00
