SPEED7 317SN Net -2Mb
Part No: VIPA 317-4NE11
.
CPU 317SN/NET – SPEED7 Technology
Programmed by STEP7 from Siemens or WinPLC7 from VIPA
DC 24V
2MByte (1Mb code, 1Mb data), expandable up to 8MByte work memory,
MPI interface, 187.5 to 12Mb
MMC slot,
real time clock,
SPEED bus,
8192/8192byte I/O address area
2048 timers (IEC timers unlimited)
2048 Counters (IEC Counters unlimited)
16,384 flag byte
8191 - FB, FC, DB Firmware upgrade via MMC
Ethernet interface for PG/OP communication
Profibus-DP master, 12MBaud, up to 126 slaves,
As well as the standard function of the DP Master/slave port the CPU 317-4NE11 offers a extra mode of switchable RS485 interface for PtP communication with Modbus and other serial protocols.
Extra to the 2 standard Ethernet PG/OP channels that all SPEED7 CPUs offer, this CPU 317-4NE11 integrates the CP343 Ethernet interface for up to 64 TCP connections and 32 PG/OP connections.
TCP/IP and S7-communication

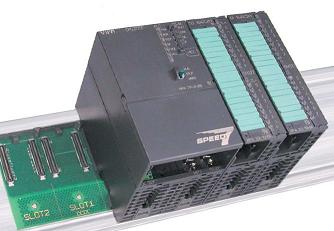

The new SPEED7 CPU's from VIPA are the fastest PLC in the world, more than 10x faster than the Siemens S7-400 CPU's the VIPA SPEED7 can handle the biggest applications. The memory is not fixed in size, it is expandable by purchasing a MMC memory upgrade, so your plant cost life cycle is reduced. The SPEED Bus located to the left of CPU allows for extremely high speed access to the CPU for fast I/O, special communication processors like Profibus, CanBus, Ethernet etc.
