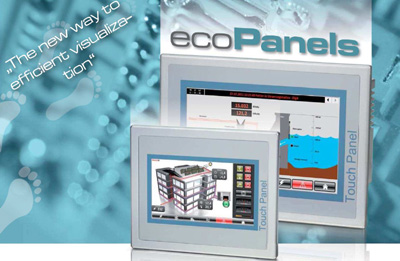

TP 604LC ECO Movicon
Part No: VIPA 62E-MGC0-DH
.
Touch Panel ECO TP 604LC, 4.3“ TFT color, RS485, RS232, RS422, USB-A, Ethernet RJ45 10/100Mb, (MPI/Profibus-DP optional), incl. Windows CE 6.0 Core and Runtime Movicon11 Basic.

24VDC, 11...36V range
140 x 116 x 57mm
Cutout - 123 x 99mm identical to Siemens KTP400
ARM 11 533MHz Processor
128 MByte Flash
128MByte RAM
MMC/SDCardSlot
Horizontal or vertical display setting
RS232, RS485, RS422, (MPI, Profibus-DP-Slave – optional), Ethernet, USB.A on board
Windows CE 6.0 Core,
Movicon11 Basic Runtime
Plastic Case
Industrial protection IP65 (front side)
Movicon11 Real Flexible XML and Web Services technology
Animated templates with appealing graphic functions
Graphic interface with standardised XP-object library
Recipe administration based on related data bases
Effective alarm management
Limited Historical event archive based on TXT and XML
SMS and E-Mail administration
Dynamic trends, Historical only whilst screen open
Conformity to FDA 21 CFR part 11
Passwords with 1.024 user levels and 16 access areas
Complete VBA support
Limited Data Logger via TXT and XML
Extensive driver library
Comprehensive symbol library
Importing function for STEP®7 from Siemens for Symbol-Data-Format (SDF)


Replaces VIPA 62E-MDC0-DH
