S7-300® CPU's
Firmware Upgrade MMC
FLASH MMC
SPEED7 312SC - StarterKIT
SPEED7 312SC -32kB
SPEED7 313SC - StarterKIT
SPEED7 313SC -64kB
SPEED7 313SC/DPM -64kB
SPEED7 313SC-DP - StarterKIT
SPEED7 314SC/DPM -128kB
SPEED7 314SE DPs -128kB
SPEED7 314ST/DPM -512kB
SPEED7 315SB DPM -1Mb
SPEED7 315SN Net -1Mb
SPEED7 317SE DPM -2Mb
SPEED7 317SN Net -2Mb
SPEED7 MemUp1- 128K
SPEED7 MemUp2- 256K
SPEED7 MemUp3- 512K
SPEED7 MemUp4- 1Mb
SPEED7 MemUp5- 2MB
SPEED7 MemUp6- 4MB
SPEED7 MemUp7- 8MB
xCPU 314-1 DPS - 96K
xCPU 314-2 DPM -96K
xCPU 314-3 TCP -96K
xCPU 315-1 DPS -192K
xCPU 315-2 DPM -192K
xCPU 315-3 TCP -192K
xCPU 316-2 DPM -256K
xCPU 316-3 TCP -256K
xFLASH eprom 128k
xFLASH eprom 16K
xFLASH eprom 32k
xFLASH eprom 512k
xFLASH eprom 64k
xFLASH RAM 1Meg
 Firmware Upgrade MMC Micro Memory Card formated for the VIPA S7 CPU's. Firmware MMC Comes pre –loaded with the latest firmware for your CPU. Comes also pre-loaded with the latest firmware for your DP Master Just complete a master reset, plug in the supplied MMC turn power on and the firmware will be automatically upgraded. PLEASE SUPPLY YOUR CPU PART NUMBER, VERSION ....... please click for full text ..... |
|
FLASH MMC Micro Memory Card formated for the VIPA CPUs. MMC ....... please click for full text ..... |

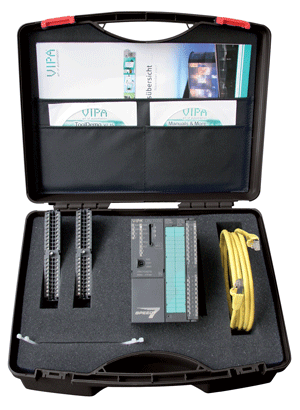

 SPEED7 312SC - StarterKIT Starter Kit – SPEED7 Technology Includes, VIPA 312-5BE03 PLC, WinPLC7 software, Ethernet cable, getting started booklet and case. Available for sale whilst stock is available ex Germany. One per company. CPU 312SC – SPEED7 Technology 16 Digital Input - of which 16 interrupts capable, 2 x 32 bit counter 10kHz 8 Digital ....... please click for full text ..... |
 SPEED7 312SC -32kB CPU 312SC – SPEED7 Technology 16 Digital Input - of which 16 interrupts capable, 2 x 32 bit counter 10kHz 8 Digital Outputs 0.5amp - of which 2 x PWM / 2 x Stepper Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 32kByte memory, expandable up to 512kByte memory, (50% program + 50% data) MPI interface ....... please click for full text ..... |
|
SPEED7 313SC - StarterKIT Starter Kit – SPEED7 Technology Includes, VIPA 313-5BF03 PLC, WinPLC7 software, Ethernet cable, getting started booklet and case. Available for sale whilst stock is available. One per company. CPU 313SC – SPEED7 Technology 24 Digital Input - of which 16 interrupts capable, 3 x 32 bit counter 60kHz 16 Digital Outputs 0 ....... please click for full text ..... |
 SPEED7 313SC -64kB CPU 313SC – SPEED7 Technology 24 Digital Input - of which 16 interrupts capable, 3 x 32 bit counter 60kHz 16 Digital Outputs 0.5amp - of which 3 x PWM / 3 x Stepper 4 AnIn, 12bit voltage and current 2 AnOut, 12bit voltage and current 1 AnIn, 12bit RTD Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V ....... please click for full text ..... |
|
SPEED7 313SC/DPM -64kB CPU 313SC/DPM – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA 64kByte, expandable up to 512KByte work memory (50% program/50% data), DC 24V MPI up to 12Mb ! MMC slot real-time clock Interfaces: Profibus-DP master, 12MBaud, up to 125 slaves/PtP RS485, potential separated, ASCII, STX/ETX, 3964R, Modbu ....... please click for full text ..... |
|
SPEED7 313SC-DP - StarterKIT Starter Kit – SPEED7 Technology Includes, VIPA 313-6CF03 PLC, WinPLC7 software, Ethernet cable, getting started booklet and case. Nearly half the VIPA combined list price. Available for sale whilst stock is available. One per company. CPU 313SC/DPM – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA ....... please click for full text ..... |
|
SPEED7 314SC/DPM -128kB CPU 314SC/DPM – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA 128kByte, expandable up to 1MByte work memory (50% program/50% data), DC 24V MPI up to 12Mb ! MMC slot real-time clock Interfaces: Profibus-DP master, 12MBaud, up to 125 slaves/PtP RS485, potential separated, ASCII, STX/ETX, 3964R, Modbus ....... please click for full text ..... |
 SPEED7 314SE DPs -128kB CPU 314SE/DPs – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 128kByte memory, expandable up to 512kByte work memory,(50% program + 50% data) MPI interface, 187.5 to 12Mb! MMC slot, real time clock, 2048/2048byte I/O address area 512 timers (IEC timers unlimited) 512 Counters (IEC Counters unlimited)....... please click for full text ..... |

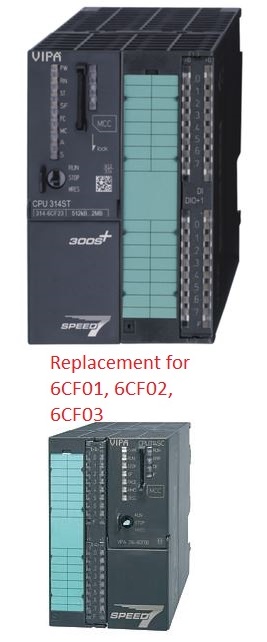

 SPEED7 314ST/DPM -512kB CPU 314ST/DPM – SPEED7 Technology 8...16 Digital Input configurable 8...0 Digital Outputs 0.5amp configurable 4 AnIn, 12bit voltage and current 2 AnOut, 12bit voltage and current 1 PT100 4 counters (100Khz) Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 512kByte memory, expandable up to 2MByte memory, (50% program ....... please click for full text ..... |
|

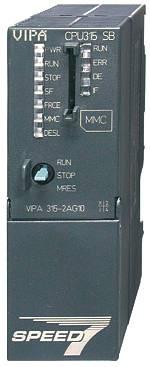

SPEED7 315SB DPM -1Mb CPU 315SB/DPM – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 1MByte memory, expandable up to 2MByte work memory,(50% program + 50% data) MPI interface, 187.5 to 12Mb! MMC slot, real time clock, 8192/8192byte I/O address area 512 timers (IEC timers unlimited) 512 Counters (IEC Counters unlimited) ....... please click for full text ..... |
 SPEED7 315SN Net -1Mb CPU 315SN/NET – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 1MByte memory expandable to 2MByte (50% program + 50% data) MPI interface, 187.5 to 12Mb MMC slot, real time clock, 2048/2048byte I/O address area 512 timers (IEC timers unlimited) 512 Counters (IEC Counters unlimited) 8192 flag byte F ....... please click for full text ..... |
|
SPEED7 317SE DPM -2Mb CPU 317SE/DPM – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 2MByte (1Mb code, 1Mb data), expandable up to 8MByte work memory, MPI interface, 187.5 to 12Mb MMC slot, real time clock, SPEED bus, 8192/8192byte I/O address area 2000 timers (IEC timers unlimited) 2000 Counters (IEC Counters unlimited) ....... please click for full text ..... |
|
SPEED7 317SN Net -2Mb CPU 317SN/NET – SPEED7 Technology Programmed by STEP7 from Siemens or WinPLC7 from VIPA DC 24V 2MByte (1Mb code, 1Mb data), expandable up to 8MByte work memory, MPI interface, 187.5 to 12Mb MMC slot, real time clock, SPEED bus, 8192/8192byte I/O address area 2000 timers (IEC timers unlimited) 2000 Counters (IEC Counters unlimited) ....... please click for full text ..... |
|
SPEED7 MemUp1- 128K MCC - Memory expansion card 128kByte for SPEED7-CPUs, 64kByte program/64kByte data ....... please click for full text ..... |
|
SPEED7 MemUp2- 256K MCC - Memory expansion card 256kByte for SPEED7-CPUs, 128kByte program/128kByte data ....... please click for full text ..... |
|
SPEED7 MemUp3- 512K MCC - Memory expansion card 512kByte for SPEED7-CPUs, 256kByte program/256kByte data ....... please click for full text ..... |
|
SPEED7 MemUp4- 1Mb MCC - Memory expansion card 1MByte for SPEED7-CPUs, 512kByte program/512kByte data ....... please click for full text ..... |
|
SPEED7 MemUp5- 2MB MCC - Memory expansion card 2MByte for SPEED7-CPUs, 1MByte program/1MByte data ....... please click for full text ..... |
|
SPEED7 MemUp6- 4MB MCC - Memory expansion card 4MByte for SPEED7-CPUs, 2MByte program/2MByte data ....... please click for full text ..... |
|
SPEED7 MemUp7- 8MB MCC - Memory expansion card 8MByte for SPEED7-CPUs, 4MByte program/4MByte data ....... please click for full text ..... |
 xCPU 314-1 DPS - 96K CPU 314 – PLC-CPU DC 24V, 96/144kB work/load memory, MP²I, MMC slot, real-time clock, Profibus-DP slave, 12MBaud, address 1...125 Siemens CPU 314 has only 48Kbytes; max 512 DI/O Programmed by STEP7 from Siemens and WinPLC7 from VIPA. VIPA CPU has more memory and a PROFIBUS DP Slave port onboard!! ....... please click for full text ..... |
|
xCPU 314-2 DPM -96K CPU 314DPM – PLC-CPU DC 24V, 96/144kB work/load memory, MPI, MMC slot, real-time clock, Profibus-DP master/slave, 12MBaud, up to 126 slaves Siemens CPU 314 has only 48Kbytes RAM, Programmed by STEP7 from Siemens and WinPLC7 from VIPA. VIPA has more memory and a PROFIBUS DP Master/Slave port onboard included!!. ....... please click for full text ..... |
|
xCPU 314-3 TCP -96K CPU 314NET – PLC-CPU DC 24V, 96/144kB work/load memory, MP²I, MMC slot, real-time clock, integrated Ethernet-CP 343, TCP/IP and S7-communication, 4tier switch, Profibus-DP master/slave, 12MBaud, up to 126 slaves, incl. parameterization software SW880" Programmed by STEP7 from Siemens and WinPLC7 from VIPA. You can use the Siemen ....... please click for full text ..... |
|
xCPU 315-1 DPS -192K CPU 315 – PLC-CPU DC 24V, 192/256kB work/load memory, MP²I, MMC slot, real-time clock, Profibus-DP slave, 12MBaud, address 1...125 Programmed by STEP7 from Siemens and WinPLC7 from VIPA. Siemens CPU 315, has only 128Kbytes RAM VIPA has more memory and a PROFIBUS DP Slave port onboard!!.. ....... please click for full text ..... |
|
xCPU 315-2 DPM -192K CPU 315DPM – PLC-CPU DC 24V, 192/256kB work/load memory, MP²I, MMC slot, real-time clock, Profibus-DP master/slave, 12MBaud, up to 126 slaves Programmed by STEP7 from Siemens and WinPLC7 from VIPA. Siemens CPU 315-2 DP has only 128Kbytes VIPA has more memory!! ....... please click for full text ..... |
|
xCPU 315-3 TCP -192K CPU 315NET – PLC-CPU DC 24V, 192/256kB work/load memory, MP²I, MMC slot, real-time clock, integrated Ethernet-CP 343, TCP/IP and S7-communication 4tier switch, Profibus-DP master, 12MBaud, up to 126 slaves, incl. parameterization software SW880 Programmed by STEP7 from Siemens and WinPLC7 from VIPA. ....... please click for full text ..... |
|
xCPU 316-2 DPM -256K CPU 316DPM – PLC-CPU DC 24V, 256/512kB work/load memory, MP²I, MMC slot, real-time clock, Profibus-DP master/slave, 12MBaud, up to 126 slaves Programmed by STEP7 from Siemens and WinPLC7 from VIPA. ....... please click for full text ..... |
|
xCPU 316-3 TCP -256K CPU 316NET – PLC-CPU DC 24V, 256/512kB work/load memory, MP²I, MMC slot, real-time clock, integrated Ethernet-CP 343, TCP/IP and S7-communication, 4tier switch, Profibus-DP master, 12MBaud, up to 126 slaves, incl. parameterization software SW880 Programmed by STEP7 from Siemens and WinPLC7 from VIPA. You can use the Siemens S7 drivers t ....... please click for full text ..... |
 xFLASH eprom 128k VIPA 951-0KG00 Flash EPROM 128kByte, 8 Bit, 5V, short for S7-300 from Siemens ....... please click for full text ..... |
|
xFLASH eprom 16K VIPA 951-0KD00 Flash EPROM 16kByte, 8 Bit, 5V, short for S7-300 from Siemens ....... please click for full text ..... |
|
xFLASH eprom 32k VIPA 951-0KE00 Flash EPROM 32kByte, 8 Bit, 5V, short for S7-300 from Siemens ....... please click for full text ..... |
|
xFLASH eprom 512k VIPA 951-0KJ00 Flash EPROM 512kByte, 8 Bit, 5V, short for S7-300 from Siemens ....... please click for full text ..... |
|
xFLASH eprom 64k VIPA 951-0KF00 Flash EPROM 64kByte, 8 Bit, 5V, short for S7-300 from Siemens ....... please click for full text ..... |
|
xFLASH RAM 1Meg Flash RAM 1Meg Byte, 8 Bit, 5V, short for S7-300 from Siemens ....... please click for full text ..... |
